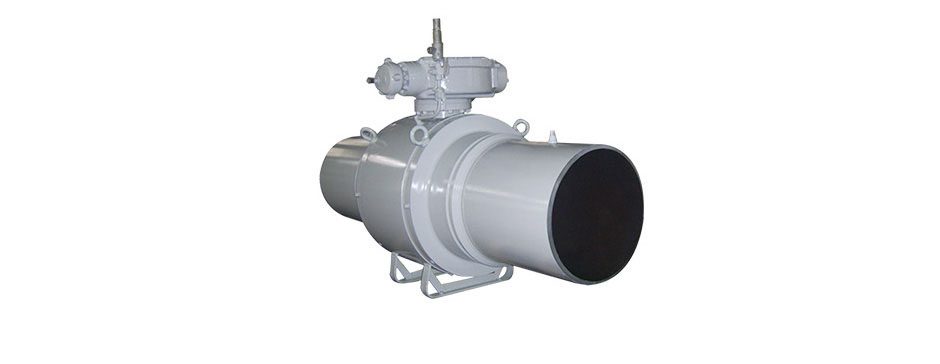

Product Name:Fully Welded Body Ball Valve
Vlave Size:6"-48"
Class:150#~2500#
Temperature Range:-120℃-427℃
The Range of Application:Suitable for water, oil and gas pipelines.
General design standard：API6D
Pressure-temperature rating: ASME B16.34
Face to face dimensions：ASME B16.10/API6D
Flange type and dimensions：ASME B16.5/ASME B16.47A
Butt-welded end：ASME B16.25
Inspection and test：API6D/API598
Anti-fly design
Stem seal seal system
Seat Emergency Seal Greaseing System
Heavy duty bearings
Double sealed superimposed
Anti-static design
Fire protection design
