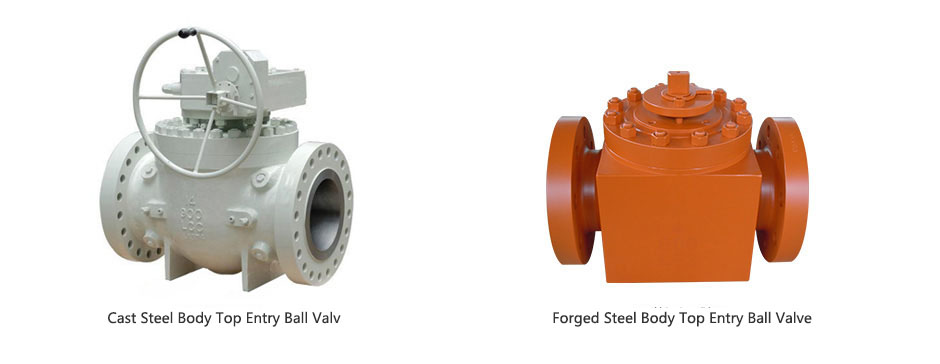

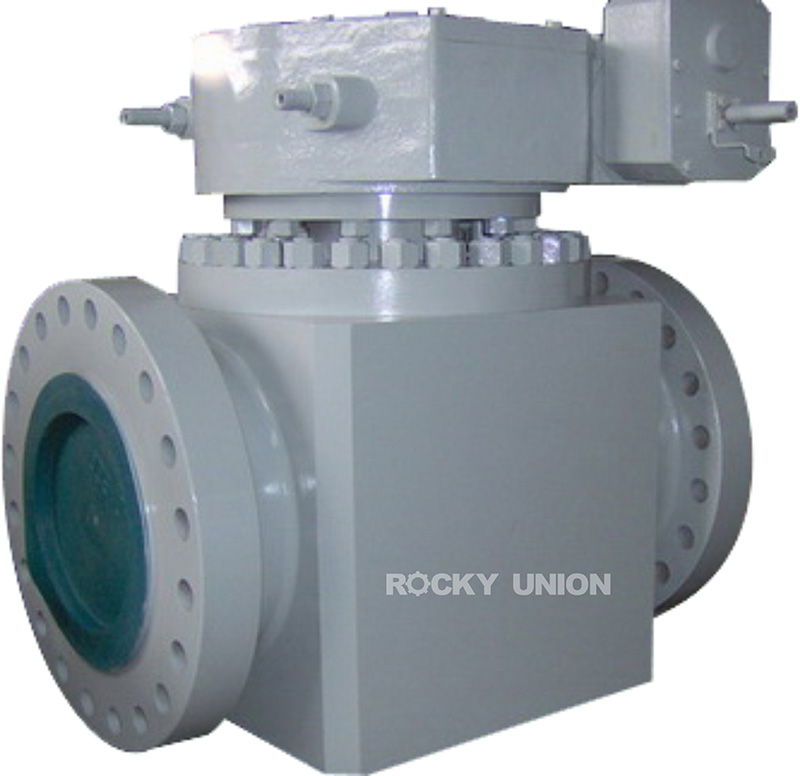

Top Entry Ball Valve

PRODUCT DESCRIPTION

Product Name:Top Entry Ball Valve

Vlave Size:2"-36"

Class:150#~1500#

Temperature Range:-120℃-427℃

The Range of Application:Suitable for water, oil and gas pipelines.

DESIGNSTANDARD

General design standard:API6D

Pressure-temperature rating: ASME B16.34

Face to face dimensions:ASME B16.10/API6D

Flange type and dimensions:ASME B16.5/ASME B16.47A

Butt-welded end:ASME B16.25

Inspection and test:API6D/API598

DESIGN FEATURE

Anti-Blowout Stem Design

Stem Emergency Sealant Injection

Seat Emergency Sealant Injection

Heavy Duty Bearings

Double Piston Seat Design

Anti-Static Design

Fire-Safe Design
